How to create VS code extension
Blog Thumbnail



Before building your first extension make sure you have Node.js & Git installed, then install Yeoman & VS Code Extension Generator using following:

npm install -g yo generator-code

Now generate a scaffolds a TypeScript or JavaScript project ready development. Run the generator and fill out few fields for project:

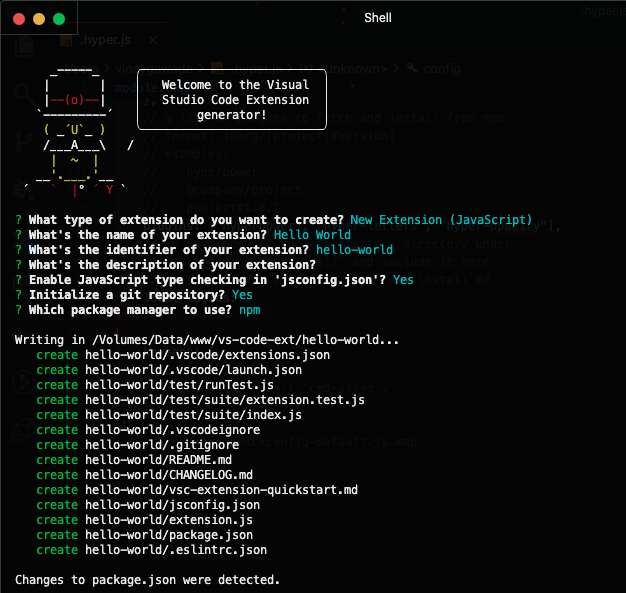

yo code
Command Output
Command Output



Go inside extension's directory and Install dependent npm modules with:

npm install

Read vsc-extension-quickstart.md from extension's directory to get the idea about directory structure.

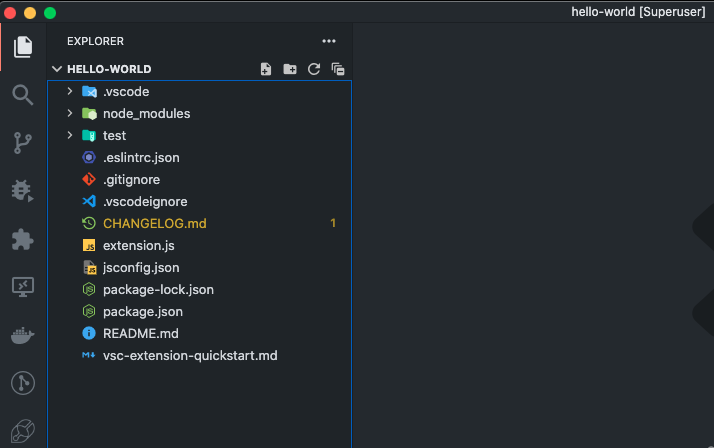

Extension Directory Structure
Extension Directory Structure


We can execute our extension inside the VS code editor by pressing F5. This will compile and run the extension in a new Extension Development Host window.

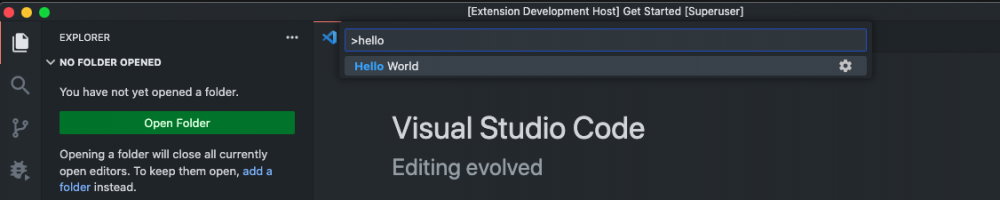

Once new window is opened you can run the Hello World command from Command Palette(⇧⌘P) :

Hello World Command
Execute Hello World Command



Once command is executed you should see the Hello World from Hello World! notification showing up. Success!

Command Output
Output Popup on VS Code



Developing the extension

Let's see how we can change our output message:

  1. Change "Hello World from Hello World!" to "Hello VS Code!" in extension.ts
  2. Run Developer: Reload Window in the new window.
  3. Then run again the Hello World command.

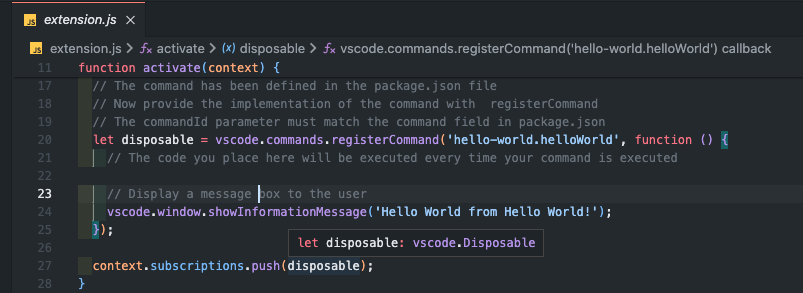

Change text in extension
Old Output Message

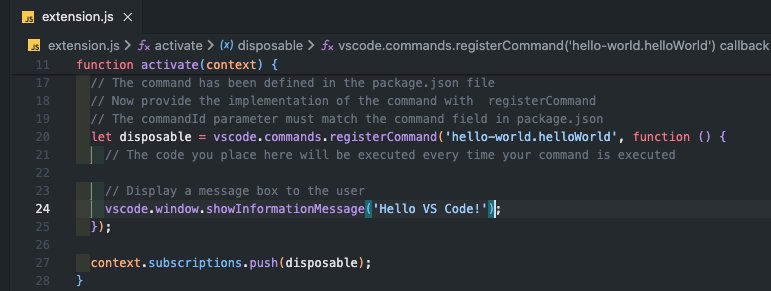

New output message
New Output Message



Now we should see the updated message showing up.

Here are some more information how you can develop this extension

  • Contribute another commands that displays current time in an information message.
  • Contribution points are static declaration you make in the package.json Extension Manifest to extend VS Code, such as adding  commands, menus, or keybindings to your extension.
  • Checkout more VS Code API to know more.

In this blog, we mainly describe how to develop VS Code extension with JavaScript. We also can use TypeScript because we believe that TypeScript offers the best experience for developing VS Code extension.

Here's the github repository :- helloworld-sample

This is also a good time to review UX Guidelines so you can start designing extension user interface to follow the VS Code best practices.
